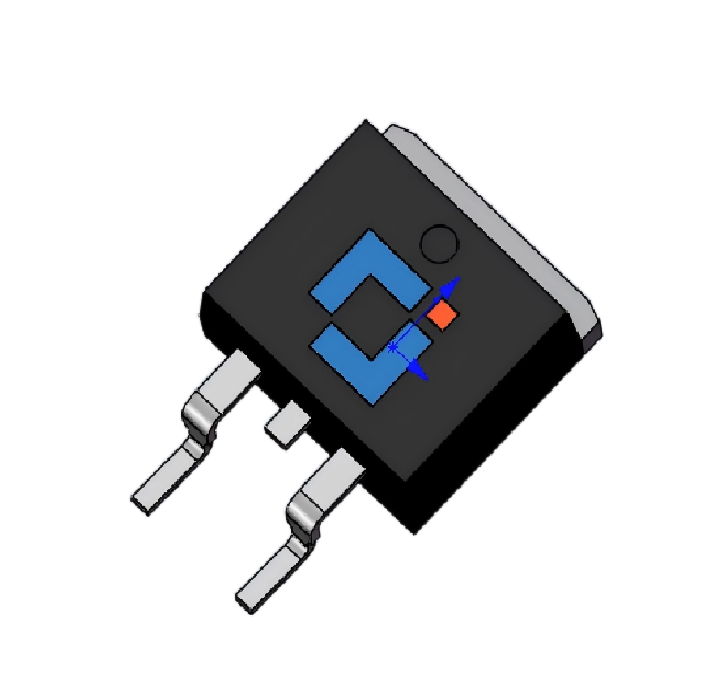

Nch 80V 85A, TO-263-2L, SGT Power MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJB85SN08C | Active | No | 80 | ±20 | 85 | 2～4 | 6.0 | 8.0 | - | - | TO-263-2L |
| Part Number | Package Type | Component Weight(mg) | Marking | Packing Info | MSL |
|---|---|---|---|---|---|
| CJB85SN08C | TO-263-2L | 1392 | B85SN08C | Tape&Reel:800pcs/Reel | MSL3 |
