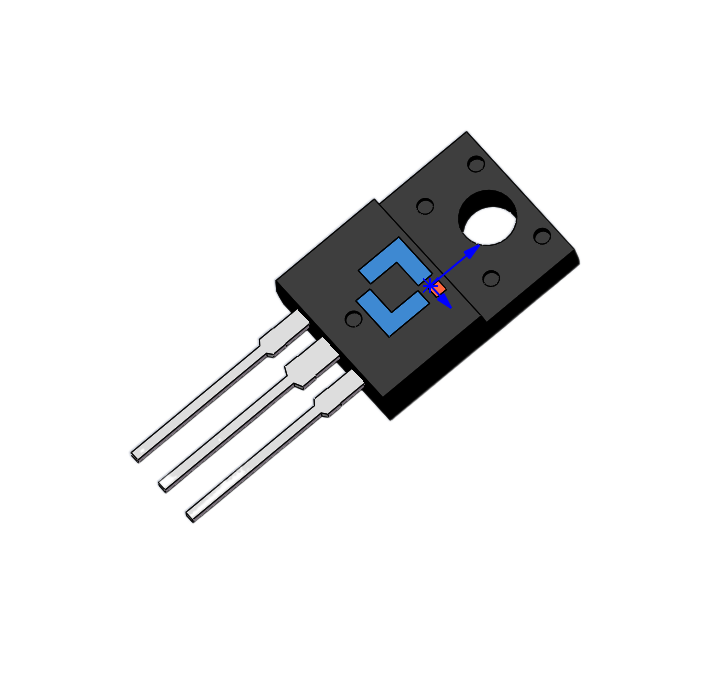

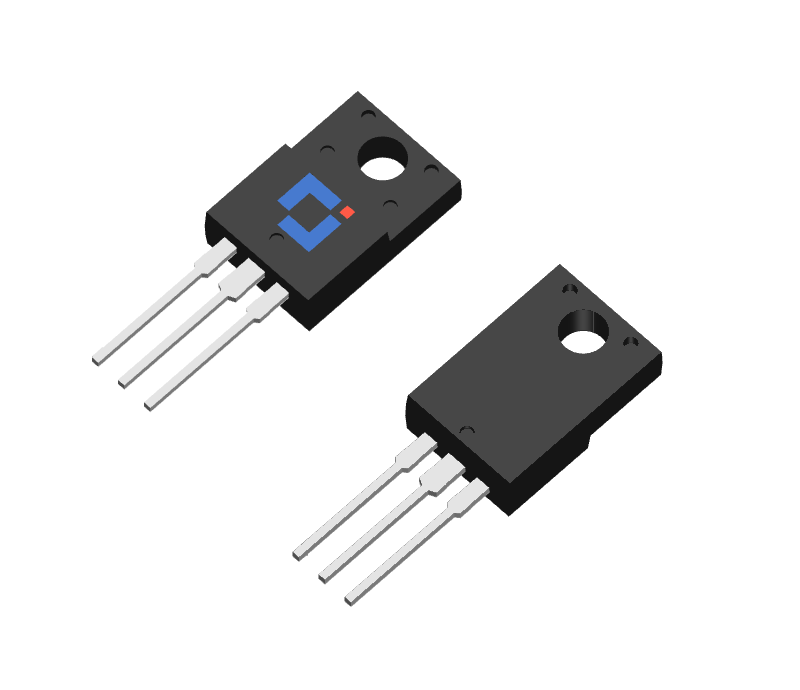

Nch 100V 130A, TO-220F, SGT Power MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJPF130SN10 | Active | No | 100 | ±20 | 130 | 2~4 | 5 | 6 | - | - | TO-220F |
| Part Number | Package Type | Component Weight(mg) | Marking | Packing Info | MSL |
|---|---|---|---|---|---|
| CJPF130SN10 | TO-220F | 1608 | PF130SN10 | Tube,50/tube | NA |
